SAND RESISTANT AND DURABLE

BUILT IN SAND STORAGE CHAMBER, COMPLETELYSAND RESISTANT AND NOT EASY TO GET STUCK

LOW VOLTAGE START

LOW VOLTAGE 120V START160V~240V NORMAL USE

WEAR-RESISTANT CERAMIC BEARING

ADOPTING CERAMICEEARINGS WITH HIGH WEARRESISTANCE RUBBER SLEEVES FOR GREATER DURABILITY

STAINLESS STEEL MATERIAL

THE PUMP HEAD, MOTOR SHAFT, AND PUMP CONNECTIONARE MADE OF STAINLESS STEEL MATERIAL

PRODUCT FEATURES

Full lift, full voltge, high efficiency, energy saving, light;

Ooi l filled motor, sound proof, slow rise in temperature, slow rise in temperature;Equip with expandable oil capsule, able to adjust motor internal and external pressure;

The pump body and the motor are in uniform size , can be assembled or disassembled easily;

PRODUCT APPLICATION

Widely used in long-distance water delivery irrigation, breeding of high oxygen, deep water extraction, urban and rural waterbooster, mine water supply or deliver syrup of r food and chemical industries, non corrosive chemical liquid, etc;

OPERATION CONDITION

The pump can be continuously functional under the conditions below

Highest liquid temperature no more than 35;

Largest media particle no bigger than 0.25%;

PH value of media shall be around 6.5-8.2;

Maximum diving depth 100meter, no less than 5mm;

Power source frequency 50Hz, single phase alternating voltage 220V, tri-phase alternating voltage 380V, voltage fluctuation ranges 10% of rated value;

PUMP/MOTOTR CONFIGURATION

·Motor;Single phase 220v/50Hz, three phase 380V/50Hz(60Hz available);

·Equip with manual control box or digital automatic control box;

Pump case use reinforced stainless steel design;

Floating impeller, multi-level, high strength;

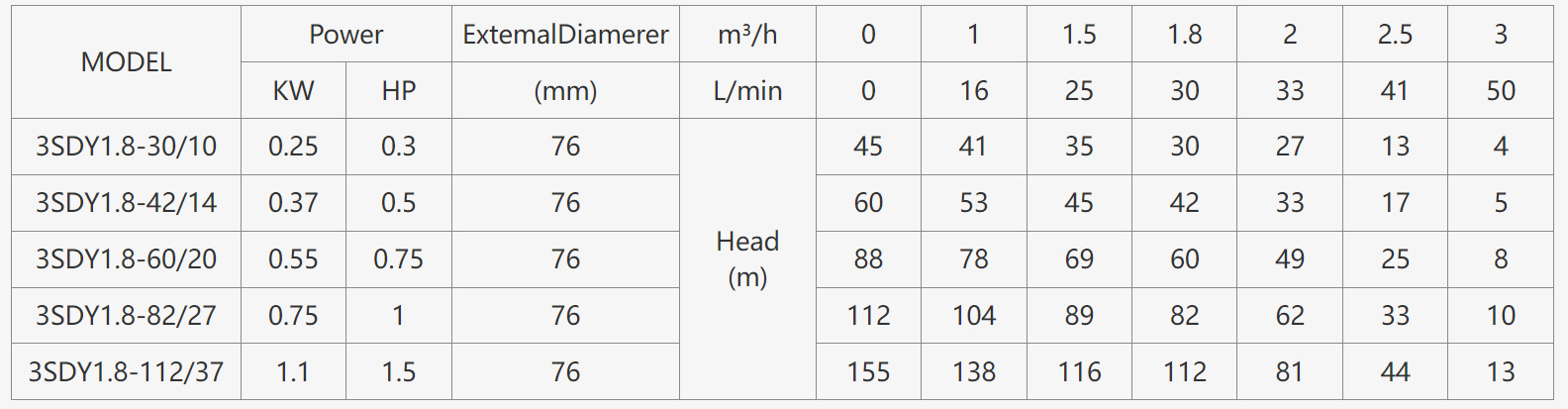

SPECIFICATIONS
