100% copper wire

Integrated pump body structure

innovative appearance design

High lift &Large flow

All copper wire motor

Security and stability

PRODUCT FEATURES

·Compact and portable, tight structure, convenient assembly;

·Higher pressure and lift than other self-priming pumps under same power;

·Stable operation, low noise and long service life;

·Check va lve applied at inlet port, ensures long term water storage inside the pump;

PRODUCT APPLICATION

The pump can be applied for deep well water drawing, high-rise construction water supply, water tower water supply, farmland remote water supply,garden large scale irrigation, mine water supply and pipe pressure charging liquid supply;

OPERATION CONDITION

The pump can be continuously functional under the conditions below

·Media temperature no more than + 45℃;

·PH value of media shall be around 6.5-8.5;

·Maximum solid impurity size no more than 0.1%, particle size no more than 0.2mm;

·Power source frequency 50Hz, power voltage 380V, voltage fluctuation ranges±10%of rated value;

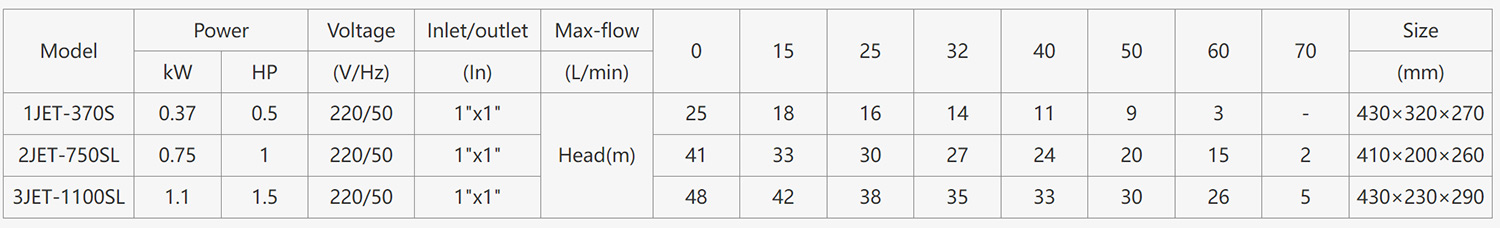

SPECIFICATIONS
